AGEMA Germany: Precision EDM Drilling Machines
August 21, 2026 / 9:16 AM
AGEMA Germany presents itself with a clear commitment to "Made in Germany" quality. All its machines are completely developed, manufactured, and assembled directly at the parent plant. The company's young and dynamic team maintains close contact with customers and offers services such as electrical discharge machining (erosion of joints), machine demonstrations, and the development of specific parameters. Thanks to its emphasis on precision and innovation, it is a reliable partner for EDM drilling projects.
The product range includes the universal AG 320 and AG 430 machines, which cover a wide spectrum of applications – from start holes to micro-drilling and functional holes, through to deep-hole drilling and sinker EDM.
Core Competencies of the Company
- Precision micro- and multi-axis drilling according to customer specifications
- Deep-hole drilling with a high aspect ratio (up to 1:300)
- Drilling of start holes of all diameters in top quality
- Hole machining (threads, grooves, micro-geometries)
- Reliable partnership in the implementation of production projects
Machined Materials
AGEMA machines handle the machining of demanding and hard materials:
- Hardened tool steels and hard metals (carbides)
- Titanium alloys
- Heavy metals (molybdenum, tungsten)
- Conductive ceramics (silicon carbide)
- Nickel-based alloys (Inconel, Hastelloy, Nitinol)
- Special alloys (Kovar, Invar, Ferrotitanite)
Technological Advantages and Equipment
AGEMA Generator
The newly developed pulse generator with state-of-the-art power electronics forms the heart of the machines. It sets new standards in precision, speed, and efficiency.
MATERIAL | ELECTRODE DIAMETER [mm] | DRILLING PERFORMANCE [mm / min] | WEAR [%] | MAX. DEPTH [mm] |
Tungsten carbide | 0.5 | 12 | 150 | 80 |
Tungsten carbide | 1.0 | 10 | 150 | >200 |
Steel | 0.5 | 22 | 75 | 80 |
Steel | 1.0 | 40 | 75 | >200 |
Micro-drilling
The production of micro-holes from a diameter of 0.06 mm takes place with consistent accuracy. The company easily handles demanding holes under 0.30 mm as well.
 |

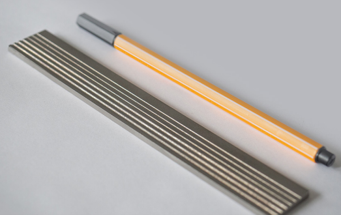

Deep-hole Drilling
An achievable length-to-diameter ratio of up to 1:300 surpasses the capabilities of conventional deep-hole drills.
 |

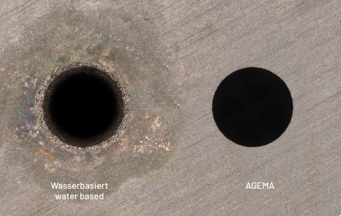

Excellent Surface Quality
Compared to EDM machines with water-based dielectric, the gentle energy input ensures a significant reduction in micro-cracks and thermal damage, thereby significantly reducing the probability of component failure.
 |

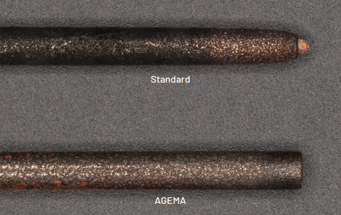

Cylindrical Holes
AGEMA's generator technology enables precise control of electrode wear, allowing for almost perfectly cylindrical holes using only a single electrode.
 |

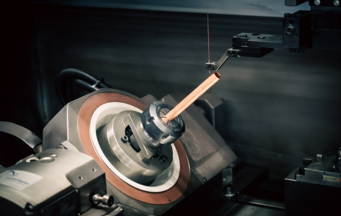

Sinker EDM and 5-axis Machining

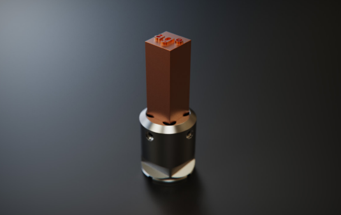

The machines can be expanded with a rotary table (2 additional axes) and used for selected sinker tasks (threads, stamping of contours and cavities).
 |  |
Automation
Electrode replacement is facilitated by the Erowa Compact interface (with a manual or pneumatic spindle) and an optional electrode changer with 6, 8, or 40 positions.
Service and Support
AGEMA provides maintenance and service even for AGEMA machines that have been operating reliably for over 30 years.
The company will present itself at the MSV trade fair in Brno (Hall P / Stand 001).
