Meet the highlights of the TAJMAC-ZPS stand at MSV 2026

Own digital ReCON solution

The ReCON product line was created within TAJMAC-ZPS, a.s. as a response to the need to digitize and streamline production processes. Our machines and technologies have long ceased to focus solely on mechanics – with increasing control complexity, higher demands on connectivity and the need to monitor real-time data, we have been looking for ways to improve our own production and our customers' operations.
Our motivation is digitalization, transparency and efficiency of production processes. We believe this path allows manufacturers to better manage their operations, eliminate losses, and significantly reduce costs. ReCON is a modular solution that covers key areas from data collection and performance monitoring, through production planning and maintenance, to tool management, quality control and environmental reporting.
Thanks to its origin in real operation and long-term testing, ReCON is a solution that stands on solid foundations and really helps. Our goal is to make it a reliable partner for all manufacturing companies that want to grow and succeed in the era of Industry 4.0.

NEW PRODUCT: SQC (Statistical Quality Control)

Transforming measurement data into automatic machine corrections for stable and predictable production quality.

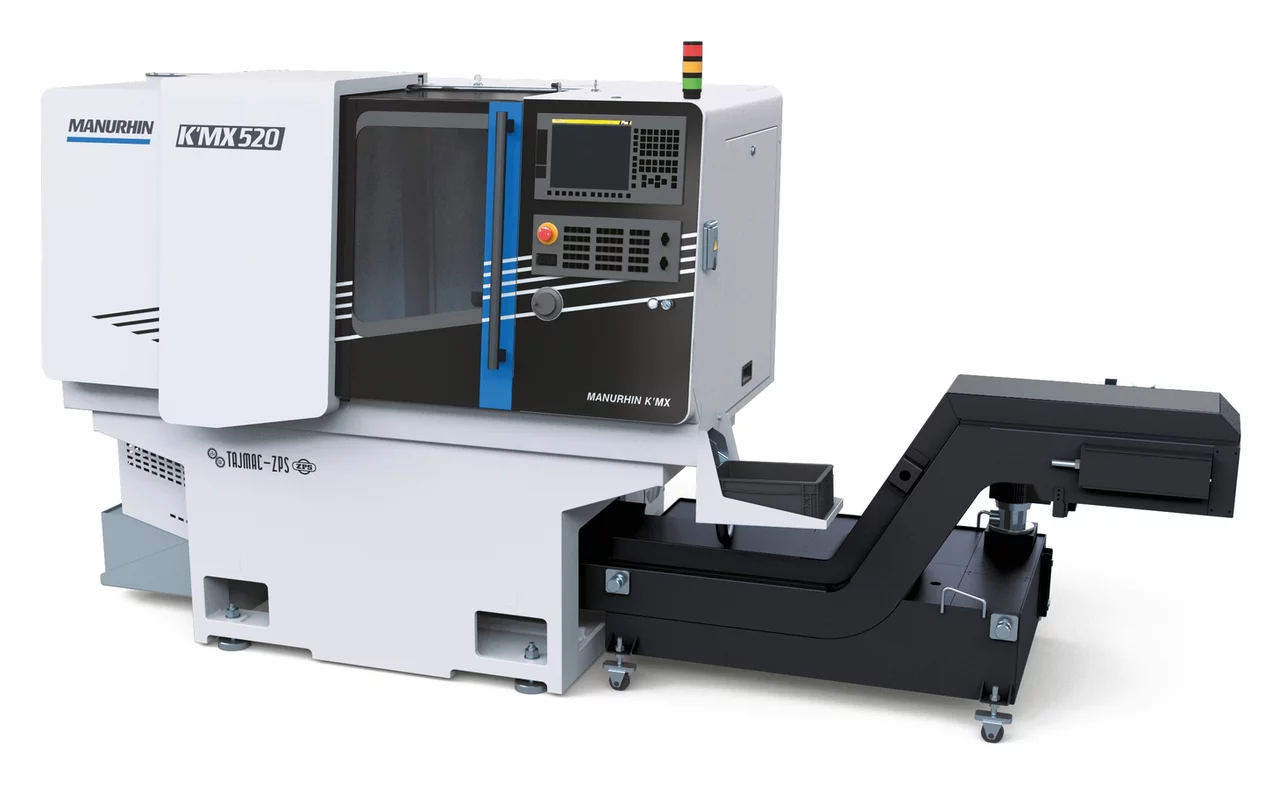

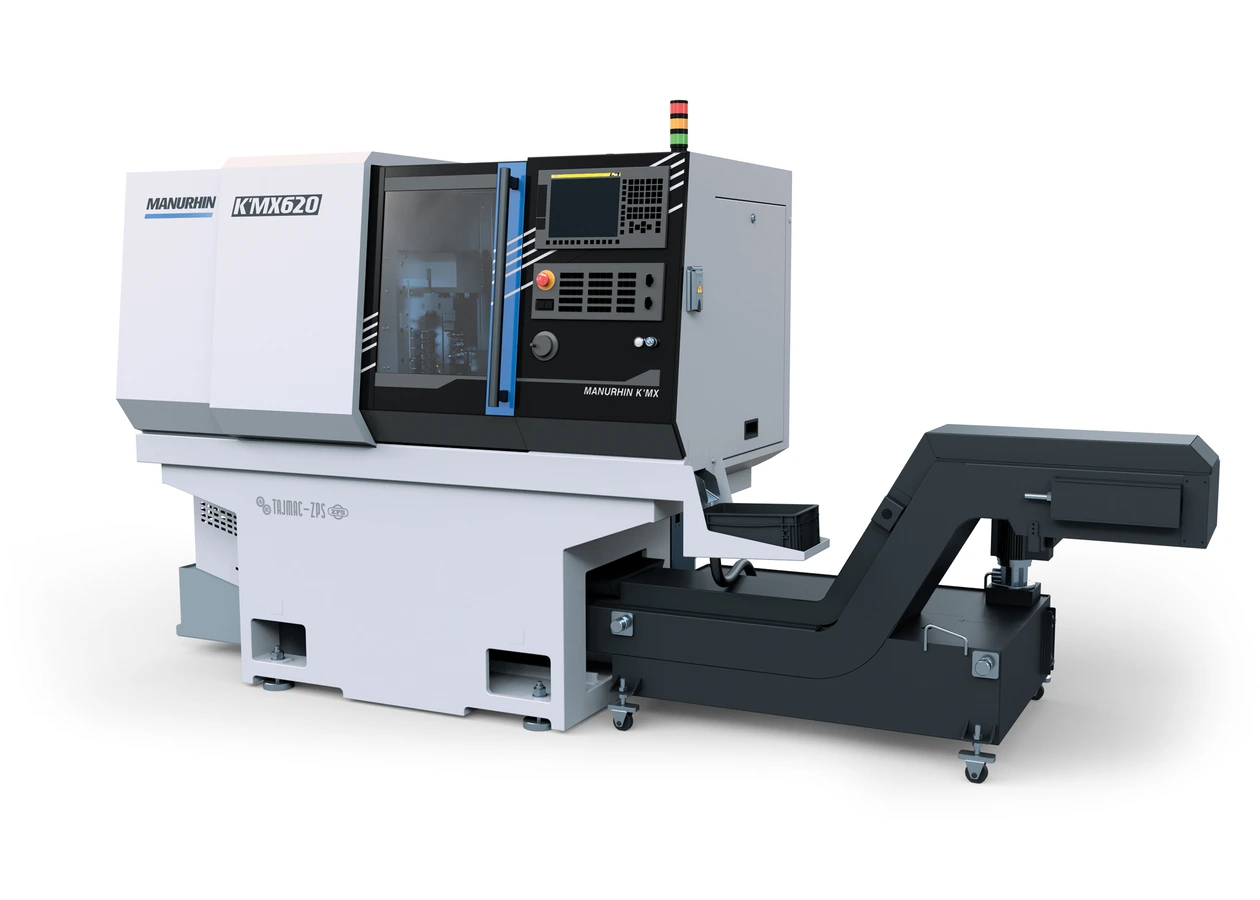

Swiss-type lathe MANURHIN K'MX 620

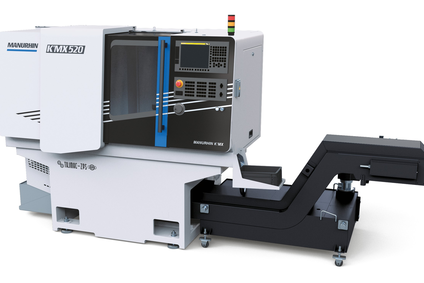

We are introducing the five-axis swiss-type lathe MANURHIN K‘MX 520 and its six-axis version MANURHIN K‘MX 620, which we are exhibiting at our stand.  It is a simpler and smaller type of machine compared to most other MANURHIN K'MX ranges. The advantage is its high usability for about 75% of market inquiries with an excellent price/performance ratio. Swiss-tape lathe with two spindles, C-axes on both spindles, 5 and 6 linear axes and driven tools for both spindles can very productively machine parts from bar material up to a diameter of 20 mm in overlapped time with different tools on both spindles at the same time.  The machine is equipped with the latest version of the Fanuc control system with the most powerful drives and is one of the fastest five-axis swiss-tape lathes on the market.

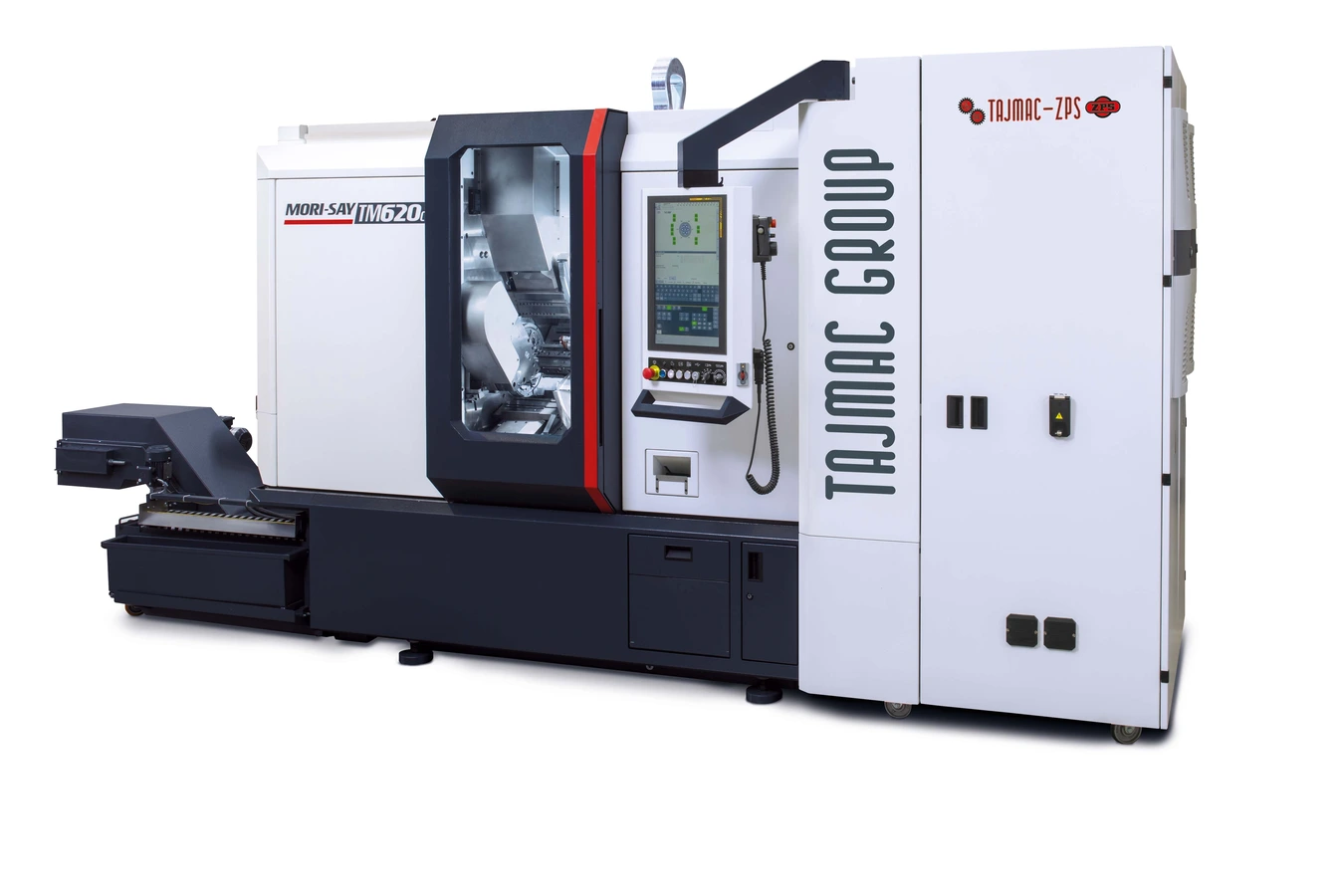

Multispindle automatic lathe MORI-SAY TM620CNC

Six-spindle fully CNC controlled automatic lathe of high accuracy, rigidity and speed. It is designed for mass and serial production of precision components from bar material up to a maximum of Ø 20 mm (Ø 24 mm). High productivity is enabled by a total of 21 CNC controlled axes and another 13 available for special accessories and 6 spindles with a maximum speed of 6,000 rpm. Spindle drum indexing: 0.7 s. The Fanuc i30-B plus control system and two operator panels ensure comfortable and friendly
machine operation.

ZPS Machining Centres

With their structural arrangement, gantry and multifunctional centres are designed not only for the production of moulds in the pressing, plastics, automotive and aerospace industries, but also for machining complex and large workpieces. The focus of application of gantry and multifunctional centres is mainly the machining of complex spatial shapes in 3D in various configurations of up to six-axis machining. Due to the high dynamics, very high rigidity and damping properties of the structure, all machines allow the use of the advantages of HSC technology.
Vertical machining centres are designed as a modular machine. They are designed for complete machining of parts made of steel, cast iron and light metal alloys of flat and box shape, clamped on a workbench. The machines allow milling, drilling, boring, reaming and threading in up to five axes.
Horizontal milling centres are designed for flat and box-shaped parts made of steel, grey cast iron and light metal alloys and complex machining of moulds, dies, etc. In addition, the rotary table allows machining from multiple sides. These are highly productive machines.  They are optimally adapted to almost any production, from mass production in lines to small series.

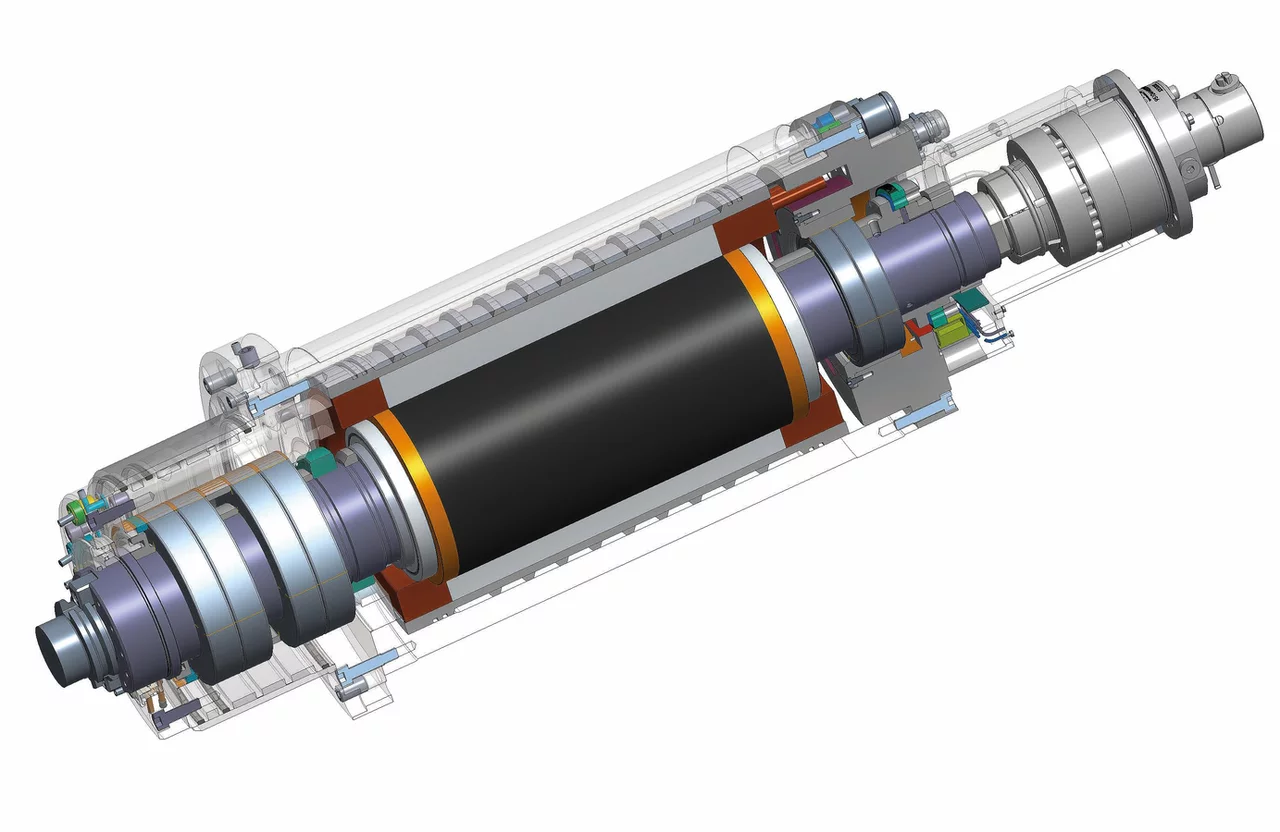

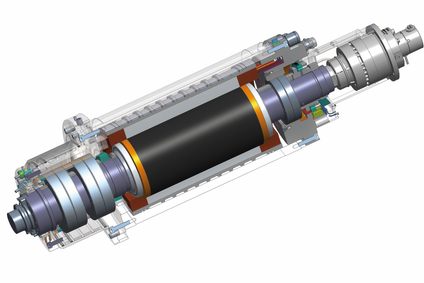

TAJMACspin – The New-Generation Electric Spindle

Power and Precision for Modern Machining

TAJMACspin is TAJMAC-ZPS’s proprietary new-generation electric spindle, setting a new standard for performance and efficiency. Developed using 123 years of experience and innovative engineering.

Exceptional performance where you need it

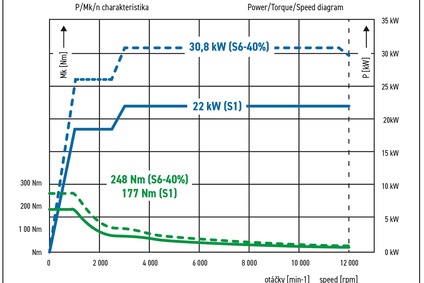

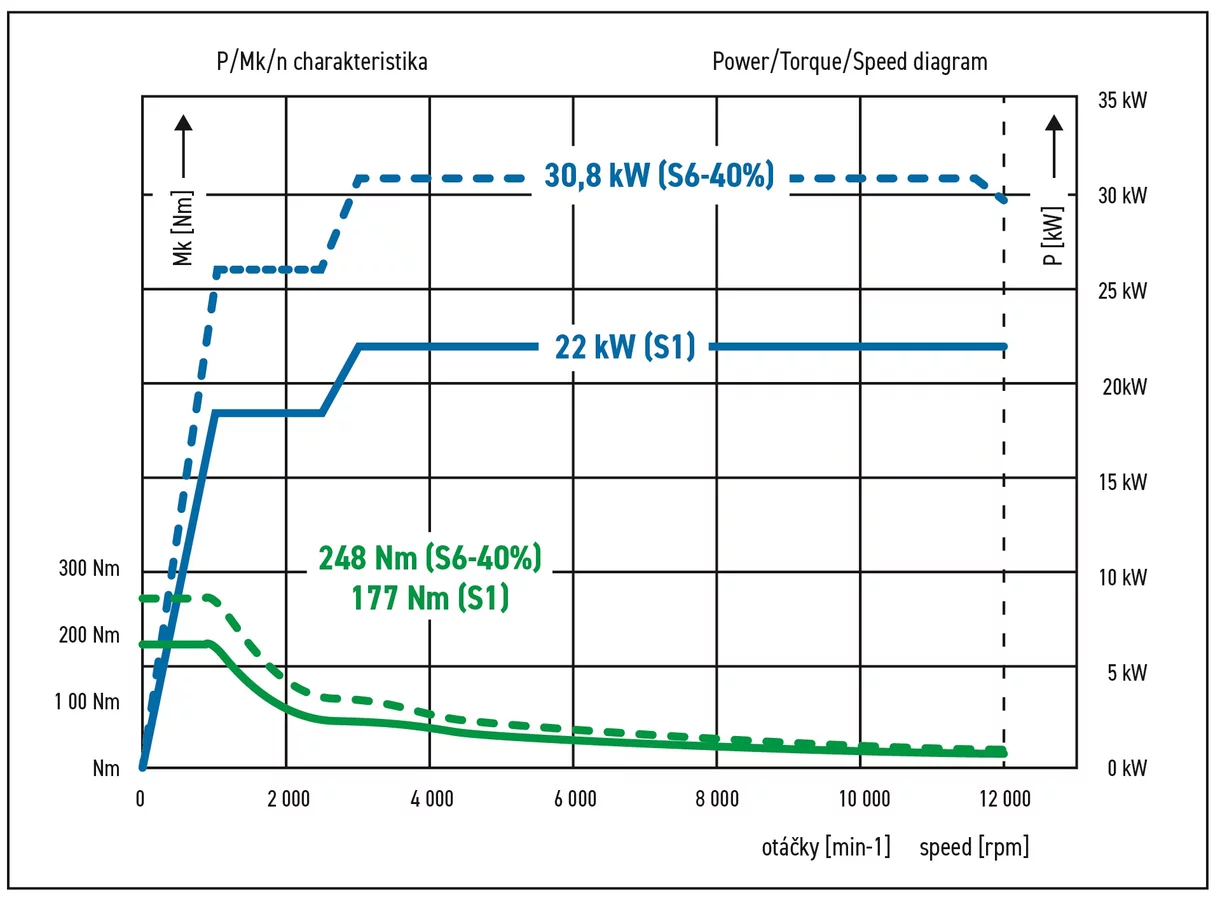

• 22 kW in S1 mode, 30.8 kW in S6-40% mode
• 248 Nm of torque up to a rated speed of 1,000 rpm
• Maximum speed of 12,000 rpm
• Asynchronous drive with star-delta switching for optimal power utilization

Precise Cooling and Stability

• Cooled motor tube and housing for minimal thermal expansion
• Spindle-axis tool cooling system using liquid and air,
  6 external liquid cooling jets and 1 air cooling jet with adjustable nozzles on the spindle nose
• Electronic monitoring of coolant leakage

Reliability without compromise

• Rigid front bearing assembly with precision spindle bearings lubricated with grease
• Double sealing and pressurization of the spindle nose to prevent contamination
• Components from proven European and Japanese manufacturers
• Fully tested in real-world operation

Intelligent solutions

• Direct electronic control of tool clamping
• Vibration diagnostics option for monitoring the machining process
• Simple connection of all utilities from the rear
• Compatible with TAJMAC-ZPS spindles; SK40 ISO-DIN / CAT / BT tool clamping

Easy integration and maintenance

• Dimensions allow for installation in a range of TAJMAC-ZPS vertical and horizontal machines
• Replaces existing belt drives
• Electric spindle service via a swap-out system directly from TAJMAC-ZPS
• Ready for machines from 2027 onward
